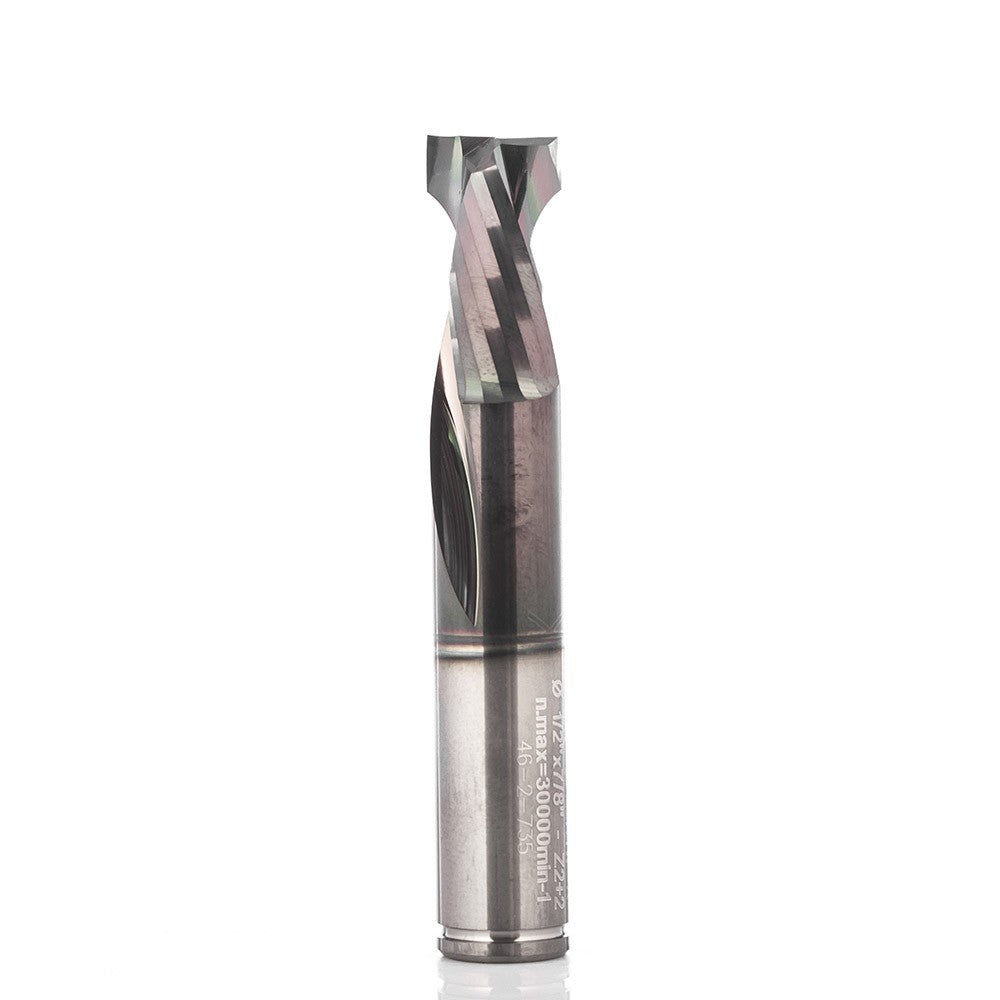

Solid Carbide Mortise Compression Z2+2 Kleindia® Coated

Right-hand rotation

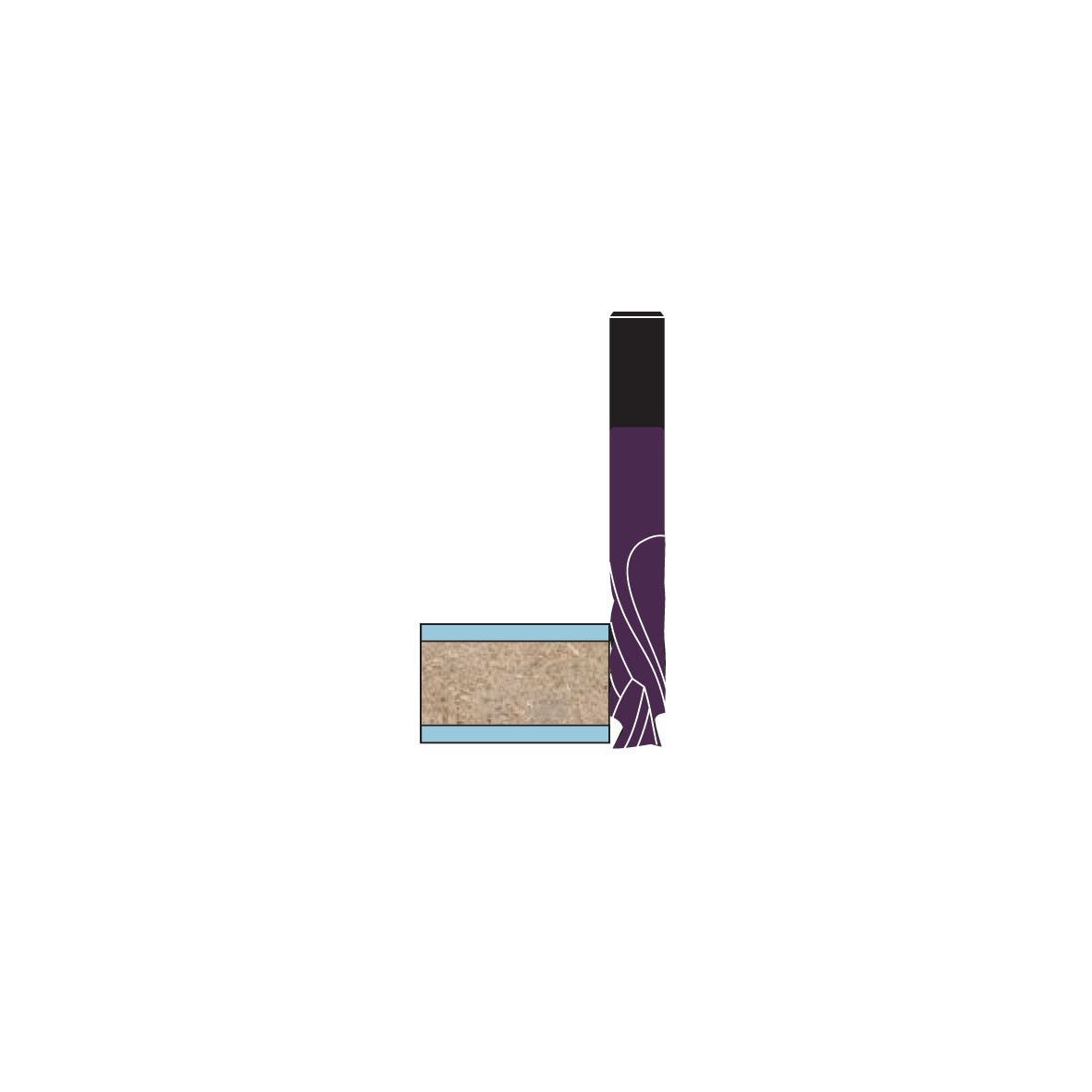

• • Excellent finish on both upper and lower side of the panel
  • Polished and coated cutting edge for improved chip evacuation and less friction for excellent performance
  • Longer tool life and greater cutting quality
  • These tools have a shorter up-cut section compared to standard compression bits. They are suitable for mortising, grooving, routing and dado
  • For softwood and hardwood, chipboard, MDF, HF, double-sided melamine and laminated, plywood, plastic coated, mineral materials (CORIAN® ecc.)
  • To be used on machining centres, CNC routers and point to point machines

  Coating for excellent performance



  A surface treatment developed for large-scale production

  KleinDIA is a DLC (Diamond-like Carbon) anti-friction coating which allows to solve problems of tool abrasion, chip evacuation and chemical attack.
  A layer of apprx. 1 micron is laid on the tool surface at low temperature, thus not altering the properties of the router bit or knife.
  Its high hardness is granted by both Sp2 (Graphite) and Sp3 (Diamond) carbon hybridisation.
  Our several tests confirmed remarkable results on both panel working, plywood, particleboard and solid wood processing. Working plastic and aluminium without coolant is also possible thanks to a very low friction coefficient.



  Technical features:
  -    High hardness Hv0,025: 2500-3100
  -    Higher wear resistance (longer working time)
  -    Low frictional coefficient (lowered working temperature)
  -    Very low sticking coefficient (Better chips evacuation)
  -    Thickness: apprx. 1 micron
  -    Colour: bright black

  KleinDIA is the most advantageous coating, ensuring:
  -    Production increase
  -    Better finishing
  -    Less maintenance
